Sun Louvres

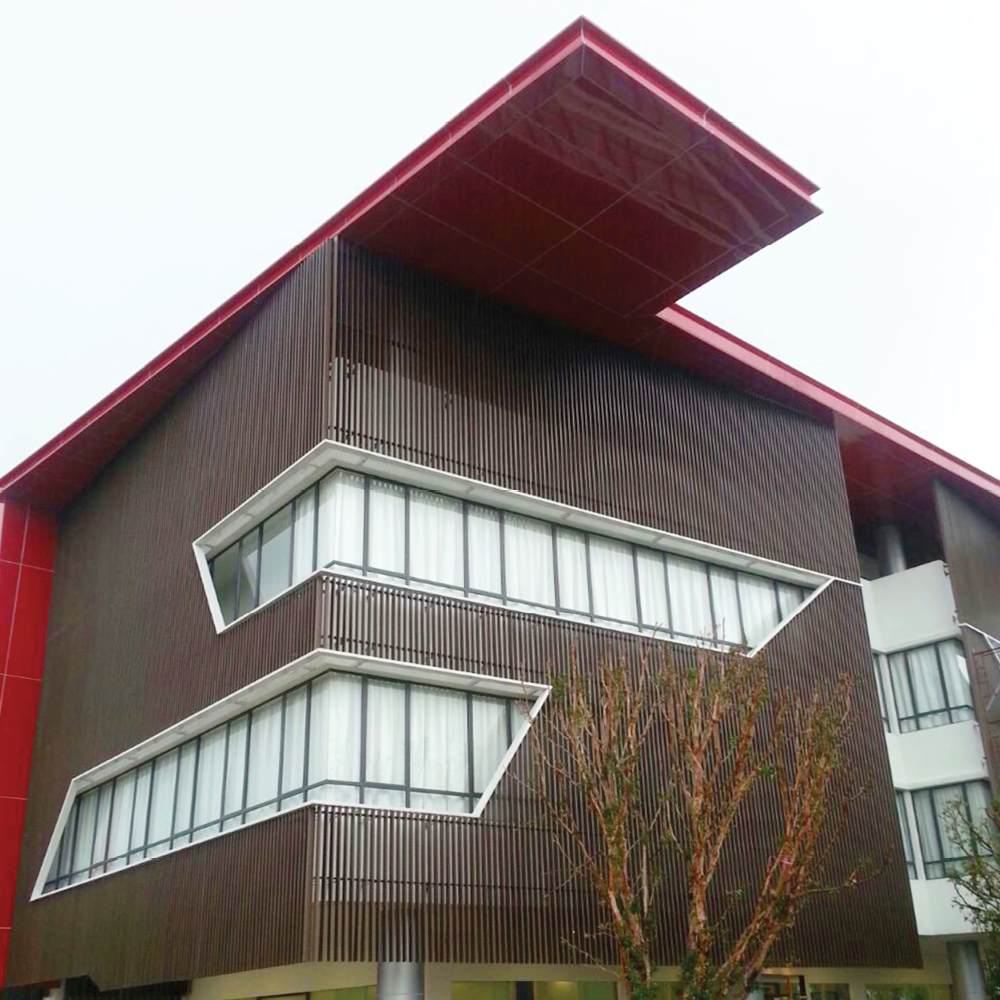

Sun Louvres BOX LOUVERS

  • TOUGH & EXTREMELY DURABLE
  • DOES NOT CONTORT UNDER INTENSE HEAT
  • ENERGY SAVING & ENVIRONMENT FRIENDLY

PRODUCT DESCRIPTION OF BOX LOUVERS

(DML BC)

  • Box shape profile panel
  • Light weight component system
  • Durable with minimum maintenance required
  • Applicable for both interior & external designs
  • Plain polyester finishes or powder coating treatment
  • Available in aluminium & aluzinc finishes
  • Available for vertical designs

MATERIAL SPECIFICATION

  • DML BC (ROLLFORMED)

    DML 100 x 20 BL / BC 100mm (W) x 20mm (H)
    Thickness (Aluzinc 0.4mm, Aluminium 0.55mm)
    DML 150 x 30 BL / BC 150mm (W) x 30mm (H)
    Thickness (Aluzinc 0.4mm, Aluminium 0.60mm)
    DML 200 x 50 BL / BC 200mm (W) x 50mm (H)(H)
    Thickness (Aluzinc 0.5mm, Aluminium 0.70mm)
  • DML BC (CUSTOM-MADE – Bending)

    DML 50 x 15 BL / BC 50mm (W) x 15mm (H)
    Thickness (Aluzinc 0.4mm, Aluminium 0.55mm)
    DML 75 x 15 BL / BC 75mm (W) x 15mm (H)
    Thickness (Aluzinc 0.4mm, Aluminium 0.55mm)
    DML 250 x 50 BL / BC 200mm (W) x 50mm (H)(H)
    Thickness (Aluzinc 0.5mm, Aluminium 0.70mm)
    DML 300 x 50 BL / BC 300mm (W) x 50mm (H)(H)
    Thickness (Aluminium 1.00mm)
    ** Standard panel distance or panel spacing centre to centre will follow the panel width depending on site conditions.
  • GI BL / BC CARRIER

    0.7mm thick x 4880mm length GI BL Carrier / GI BC Carrier
    Maximum carrier spacing must not exceed 1200mm centre to centre
  • ALUMINIUM BL / BC Hollow Section

    38mm height x 80mm width x 1.0mm thick x 6100mm length aluminium BL / BC hollow
    25mm height x 53mm width x 1.0mm thick x 6100mm length aluminium BL / BC hollow
    Maximum carrier spacing must not exceed 1500mm centre to centre
