New Products DML 190V

  • TOUGH & EXTREMELY DURABLE
  • PROTECTED FROM DISCOLOURATION
  • ENERGY SAVING & ENVIRONMENT FRIENDLY

PRODUCT DESCRIPTION

(DML 190V)

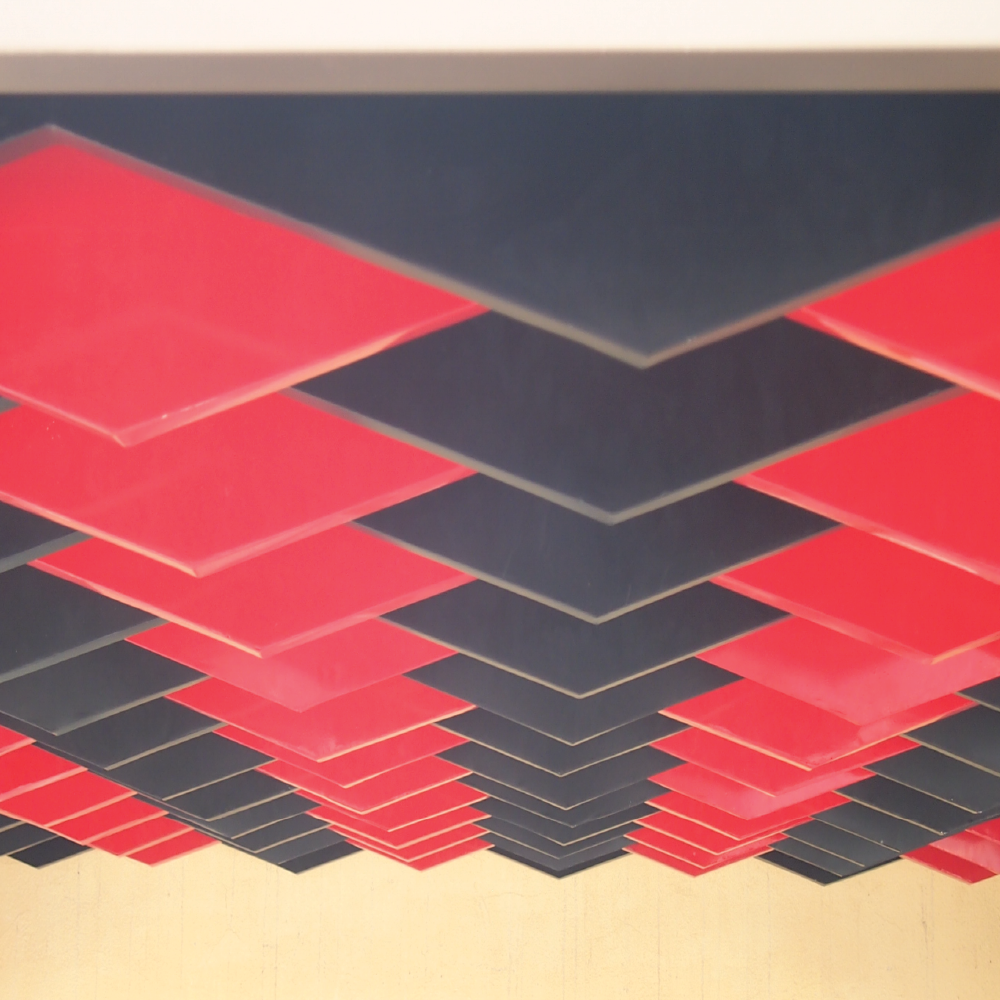

  • V shape profile panel
  • Light weight component
  • Durable and with minimum maintenance required
  • Available in Aluminium
  • Available in powder coated finishing
  • Applicable for both interior and external design
  • Applicable for horizontal and vertical design
  • Applicable baffle ceiling and ventilation louvers

MATERIAL SPECIFICATION

  • DML 190V – ALUMINIUM

    * Maximum length 2400mm x 185mm x 30mm effective width
    * 1mm thickness aluminium panel
    * Standard panel spacing at 150mm centre to centre
  • TYPE OF CARRIER – ALUMINIUM BC HOLLOW SECTION

    * Maximum carrier spacing at 1200mm centre to centre

    * 38mm (H) x 80mm (W) x 1mm (Thickness) x 6100mm (L) aluminium hollow
    * Maximum carrier spacing must not exceed 900mm centre to centre for height above 10m
