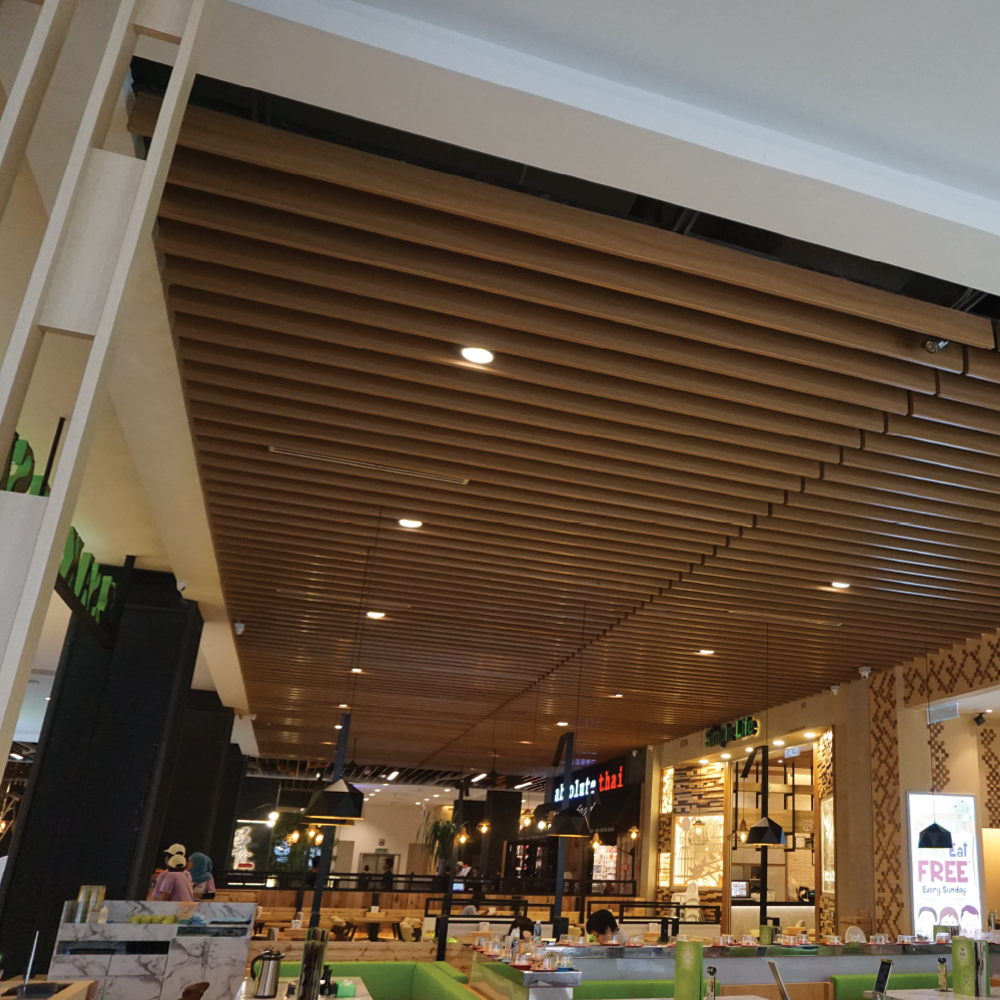

Sun Louvres U BAFFLE CEILING
- TOUGH & EXTREMELY DURABLE
- DOES NOT CONTORT UNDER INTENSE HEAT
- ENERGY SAVING & ENVIRONMENT FRIENDLY
Sun Louvres
PRODUCT DESCRIPTION OF BAFFLE CEILING
(DML U-BAFFLE CEILING)
- Box U shape profile panel
- Light weight component system
- Durable with minimum maintenance required
- Applicable for both interior & external designs
- Plain polyester finishes or powder coating treatment
- Available in aluminium & aluzinc finishes
- Available for vertical designs
MATERIAL SPECIFICATION
-
DML BC (ROLLFORMED)
DML 100 x 20 BL / BC 100mm (W) x 20mm (H)
Thickness (Aluzinc 0.4mm, Aluminium 0.55mm)DML 150 x 30 BL / BC 150mm (W) x 30mm (H)
Thickness (Aluzinc 0.4mm, Aluminium 0.55mm)DML 200 x 50 BL / BC 200mm (W) x 50mm (H)(H)
Thickness (Aluzinc 0.5mm, Aluminium 0.65mm) -
DML BC (CUSTOM-MADE – Bending)
DML 50 x 15 BL / BC 50mm (W) x 15mm (H)
Thickness (Aluzinc 0.4mm, Aluminium 0.55mm)DML 75 x 15 BL / BC 75mm (W) x 15mm (H)
Thickness (Aluzinc 0.4mm, Aluminium 0.55mm)DML 250 x 50 BL / BC 200mm (W) x 50mm (H)(H)
Thickness (Aluzinc 0.5mm, Aluminium 0.70mm)DML 300 x 50 BL / BC 300mm (W) x 50mm (H)(H)
Thickness (Aluminium 1.00mm)DML 500 x 75 BL / BC 500mm (W) x 75mm (H)(H)
Thickness (Aluminium 1.20mm)** Standard panel distance or panel spacing centre to centre will follow the panel width depending on site conditions. -
U-BAFFLE CARRIER
0.7mm thick x 4880mm length GI U BL Carrier Maximum carrier spacing must not exceed 1500mm centre to centre * 0.5mm thick Aluminium bracket -
ALUMINIUM U-BAFFLE HOLLOW SECTION
38mm height x 80mm width x 1.0mm thick x 6100mm length aluminium U-Baffle hollow 25mm height x 53mm width x 1.0mm thick x 6100mm length aluminium U-Baffle hollow Maximum carrier spacing must not exceed 1500mm centre to centre
