Ventilation Louvres

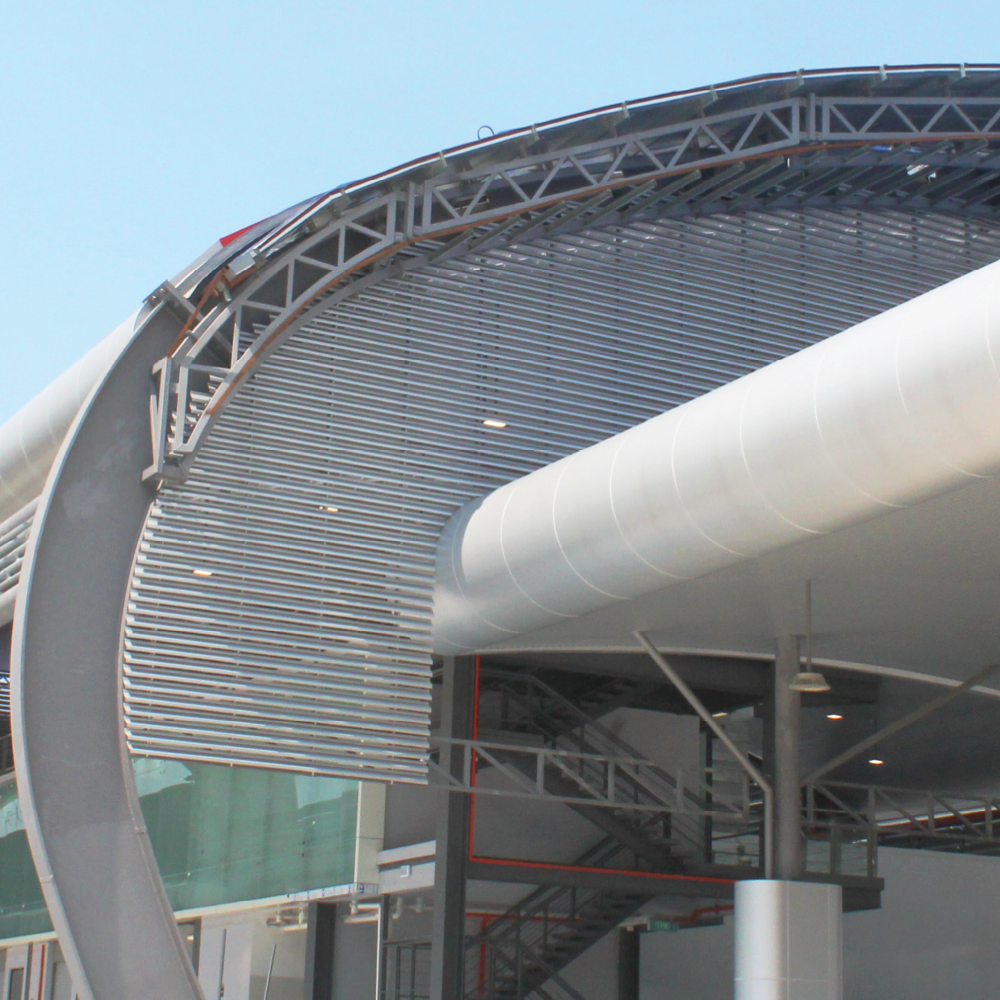

Ventilation Louvres DML 132Z

  • MULTIPLE INSTALLING METHOD
  • UNIQUE & INNOVATIVE
  • EASY TO CLEAN SURFACE

PRODUCT DESCRIPTION

(DML 120SR)

  • Z shape profile panel
  • Light weight clip on bracket system
  • Durable with minimum maintenance required
  • Applicable for both interior & external designs
  • Concealed bracket non visibility of marks on panels
  • Plain polyester finishes or powder coating treatment
  • Available in aluminium & galvanized steel finishes
  • As per DML polyester coated colours

MATERIAL SPECIFICATION

  • PANELS

    Panel Size 132m effective width
    (recommended panel spacing at 140mm c/c)
    Thickness 0.4mm thick (gross wt. 7.5 kg/m2)
    (aluzinc panel)
    0.5mm thick (gross wt. 5.3 kg/m2)
    (aluminium panel)
    Panel End Panel end holding must not exceed 300mm from end mullion
  • BRACKET

    Bracket Size 25mm width vertical fixed aluminium bracket
    (maximum length fixing at 0.3 metre centre to centre to be supported by main structural frame)
    Thickness 2.0mm thick aluminium
    (for height above 10 metre, maximum carrier spacing must not exceed 900mm c/c)
